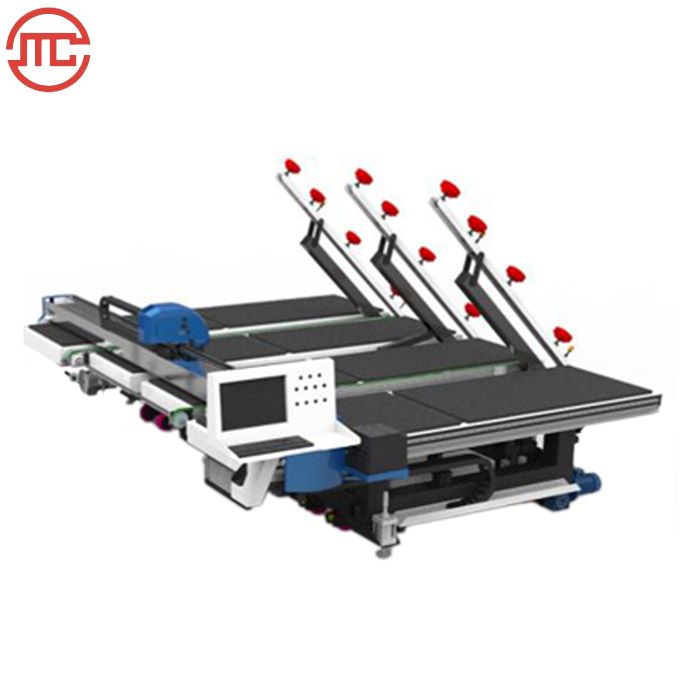

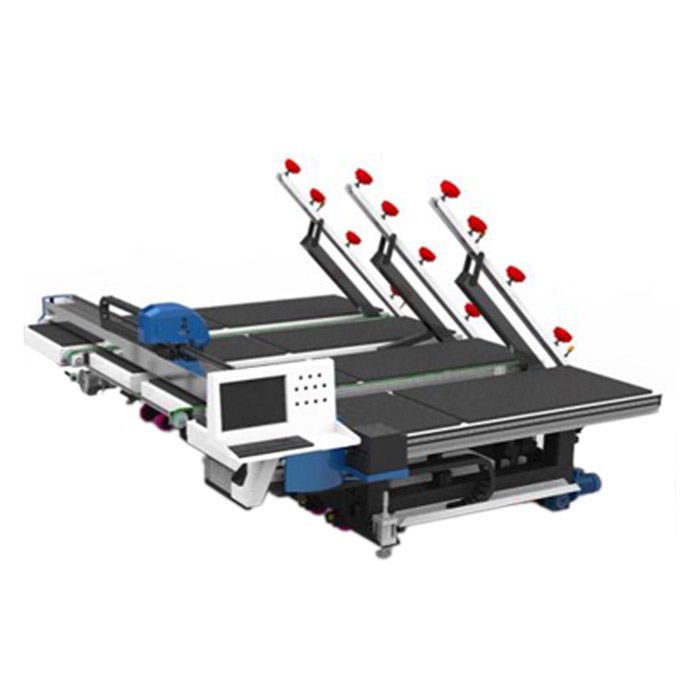

CNC Glass Cutting Table

Send Inquiry
Description
Argument
Products Description

CNC cutting table is suitable for mirrors, glasses, rock beams & ceramic tiles.


Models & Functions

Model

KMLJT2420

KMLJT3628

Machine dimension

3630*4700*1400mm

3910*4700*1450mm

Height of the Working Table

850mm

850mm

Cutting size

2440*2000mm

3660*2800mm

Glass thickness

2~19mm

2~19mm

Cutting speed

180m/min

180m/min

Straight line parallelism

≤± 0.25mm/m

≤± 0.25mm/m

Working power supply

380V, 50-60Hz

380V, 50-60Hz

Air pressure

0.6 MPA

0.6 MPA

Net weight

3000 kgs

3100 kgs

Functions (optional)

2 in 1 -   Auto cutting, loading
3 in 1 - Auto cutting, loading & delivery,
4 in 1 - Auto cutting, loading & delivery, glass breaking table
5 in 1 - Auto cutting, loading & delivery, glass breaking table   & auto label


Technical parameter


Machine Details


CNC Cutting Table (6).jpg

CNC Cutting Table (3).jpg

CNC Cutting Table (2).jpg

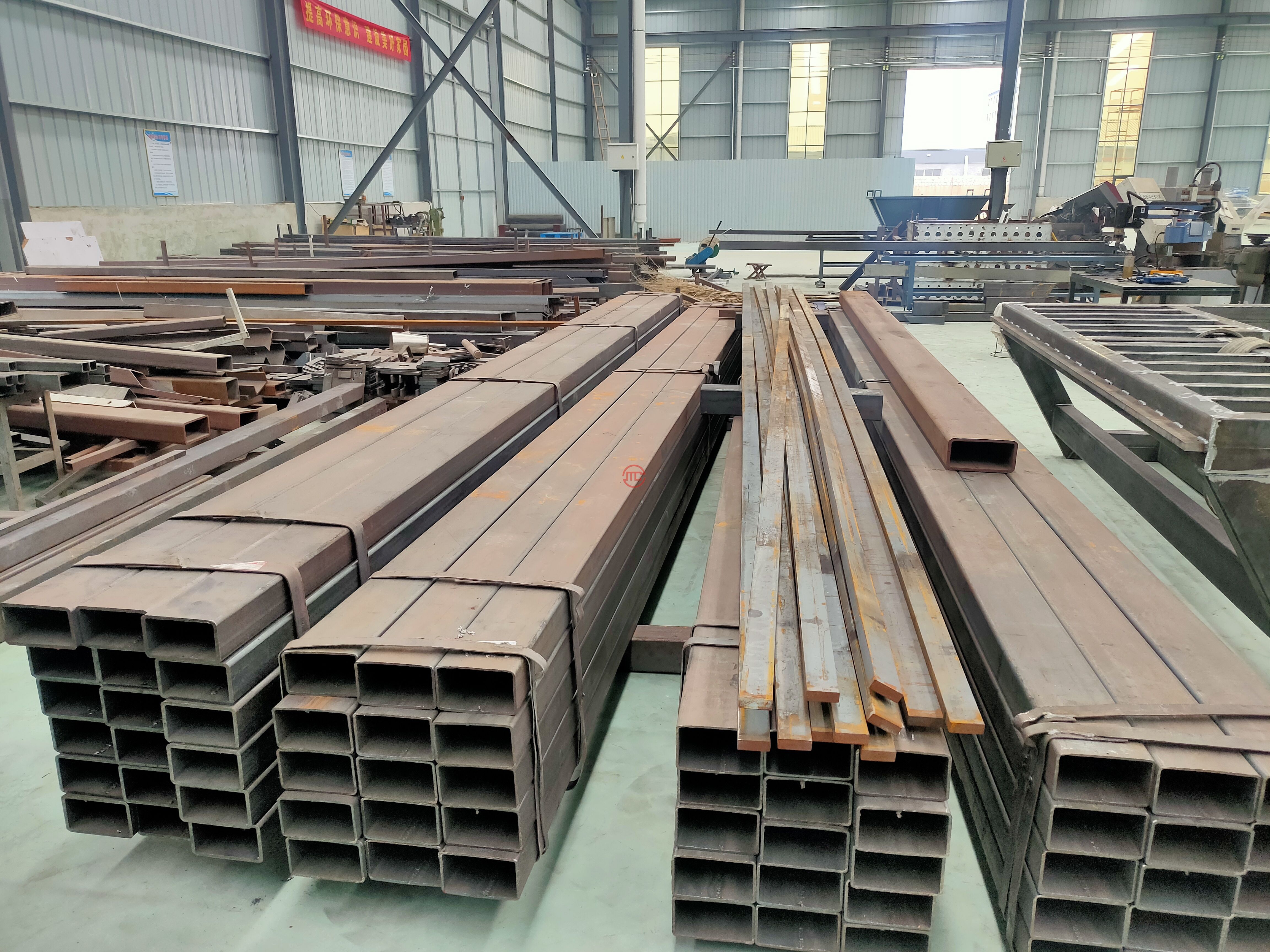

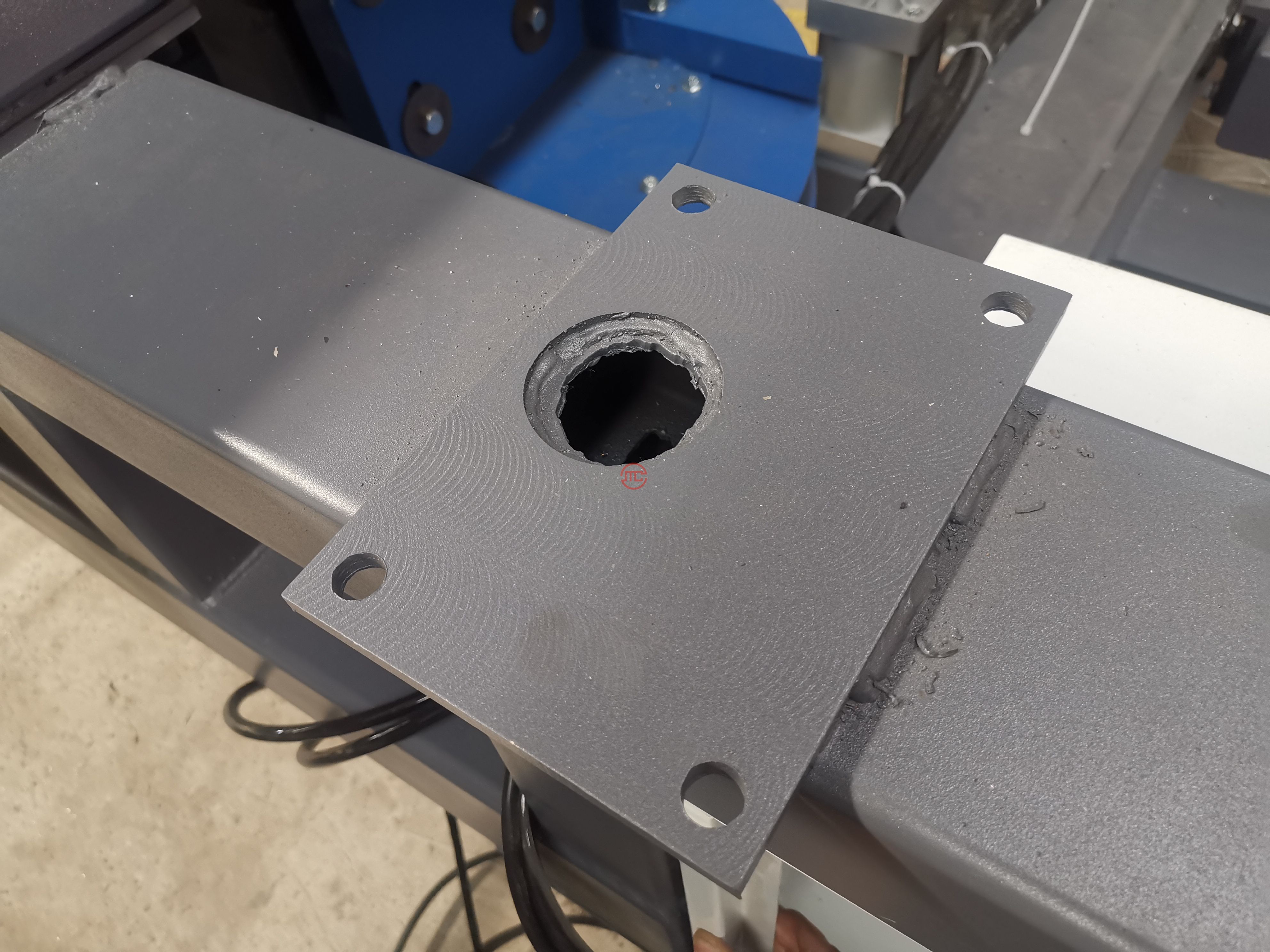

Steel Pipes

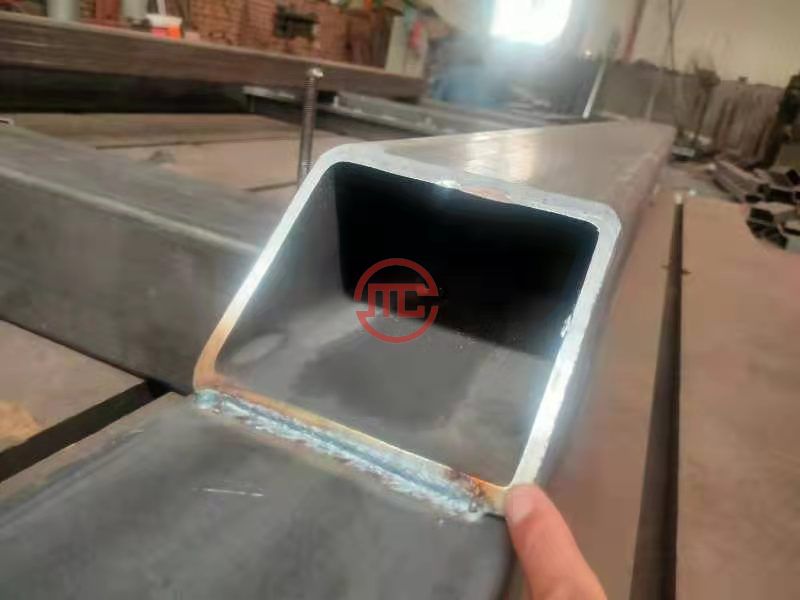

8 mm thickness

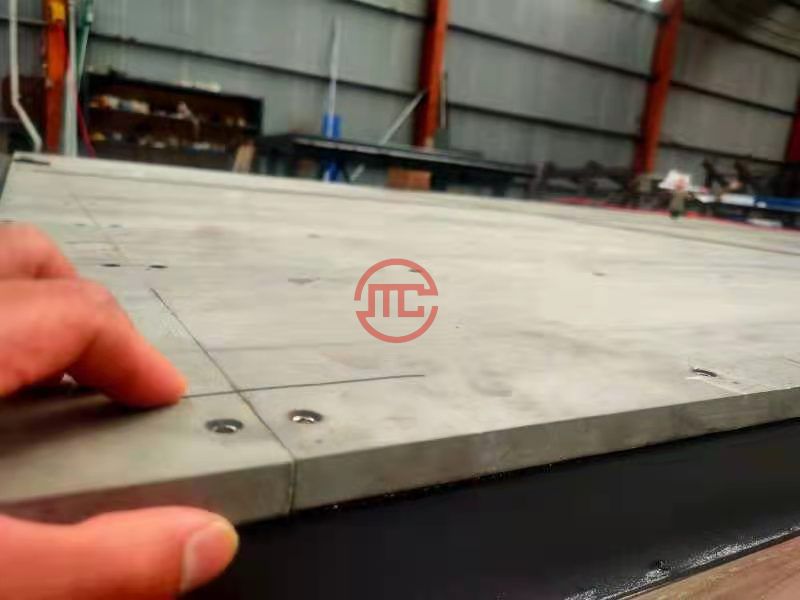

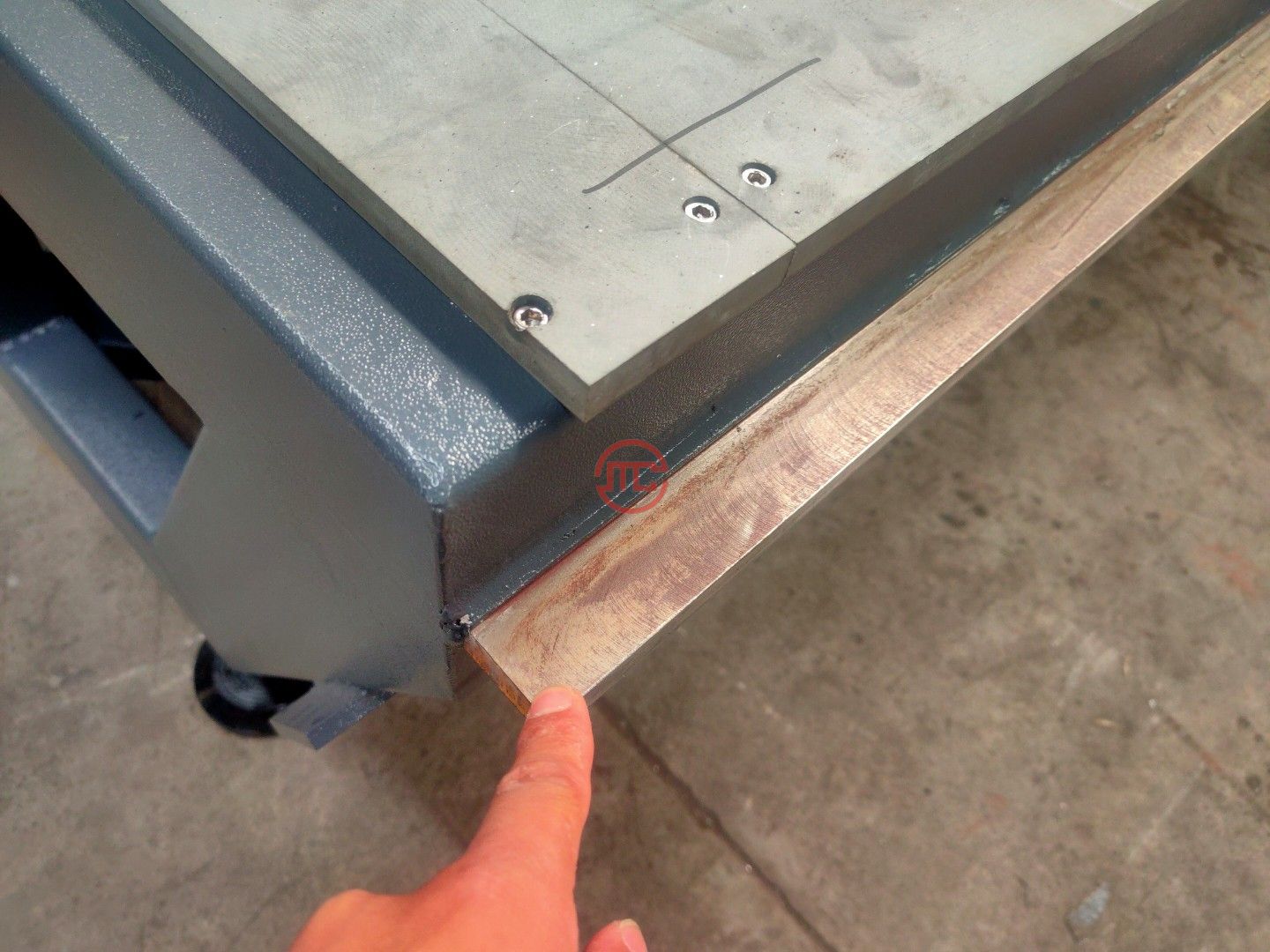

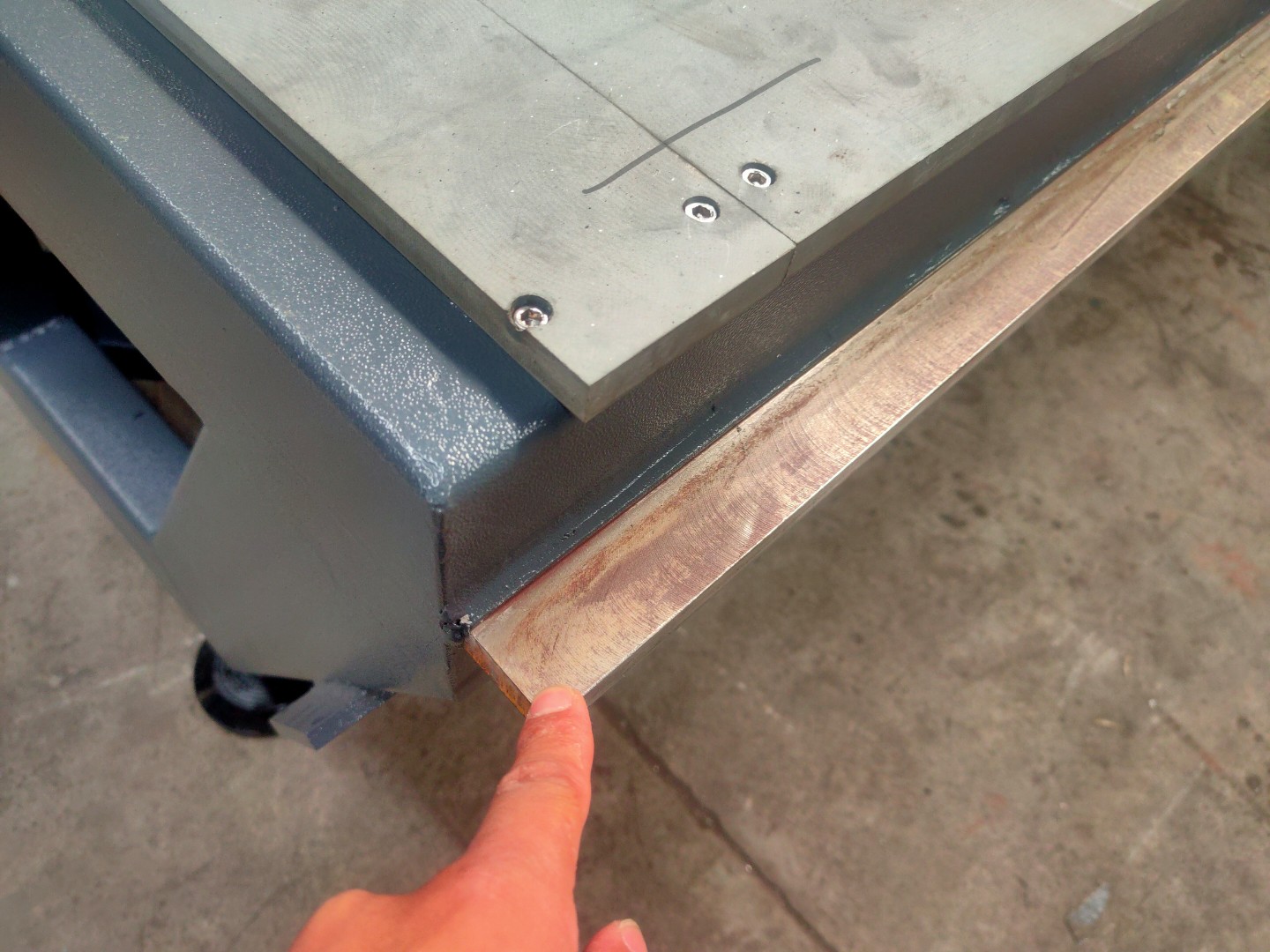

CNC Processed PVC Platform

CNC Cutting Table (5).jpg

CNC Cutting Table (4).jpg

CNC Cutting Table (7).jpg

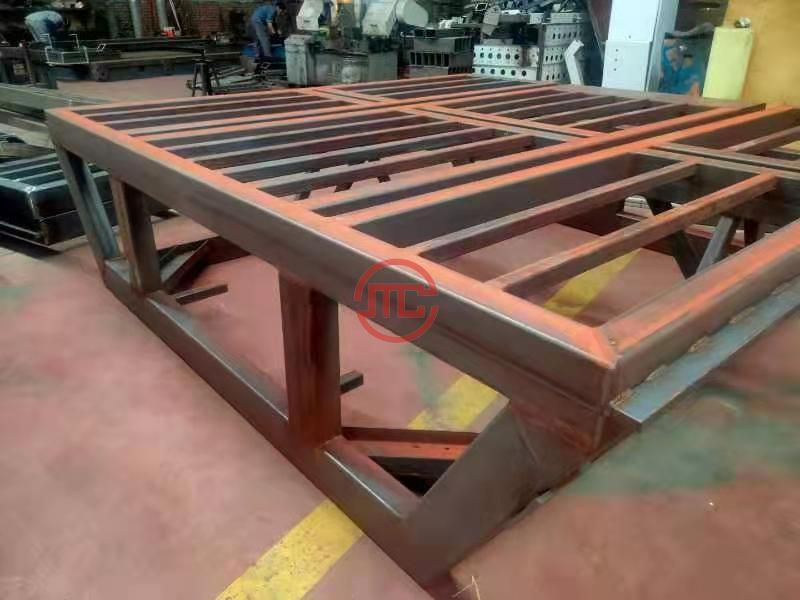

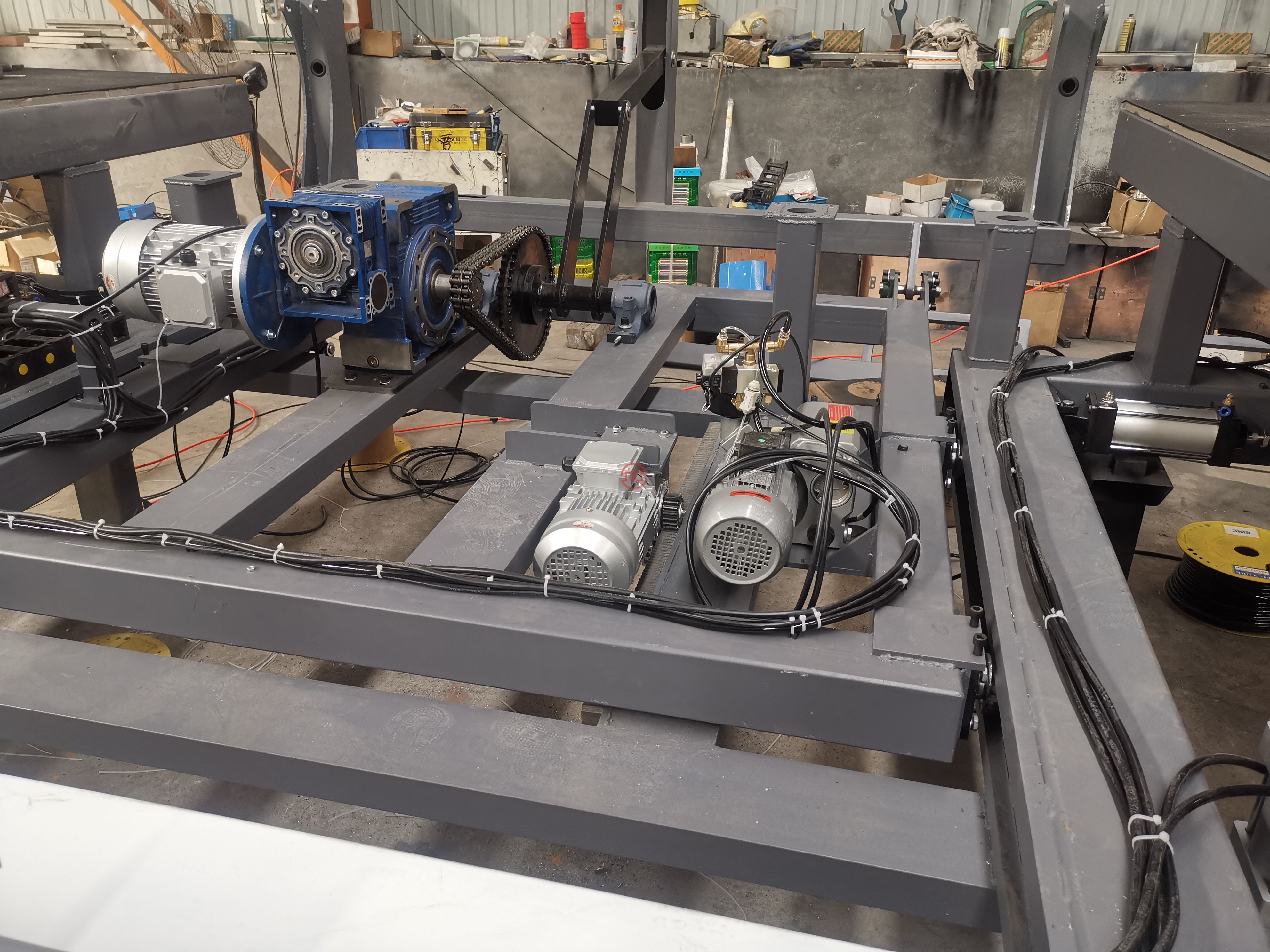

Strong Body Structure

Annealed & Heat-treatment

Electrostatic Surface Painting

CNC Cutting Table (8).jpg

CNC Cutting Table (1).jpg

CNC Cutting Table (9).jpg

Linear Guideway

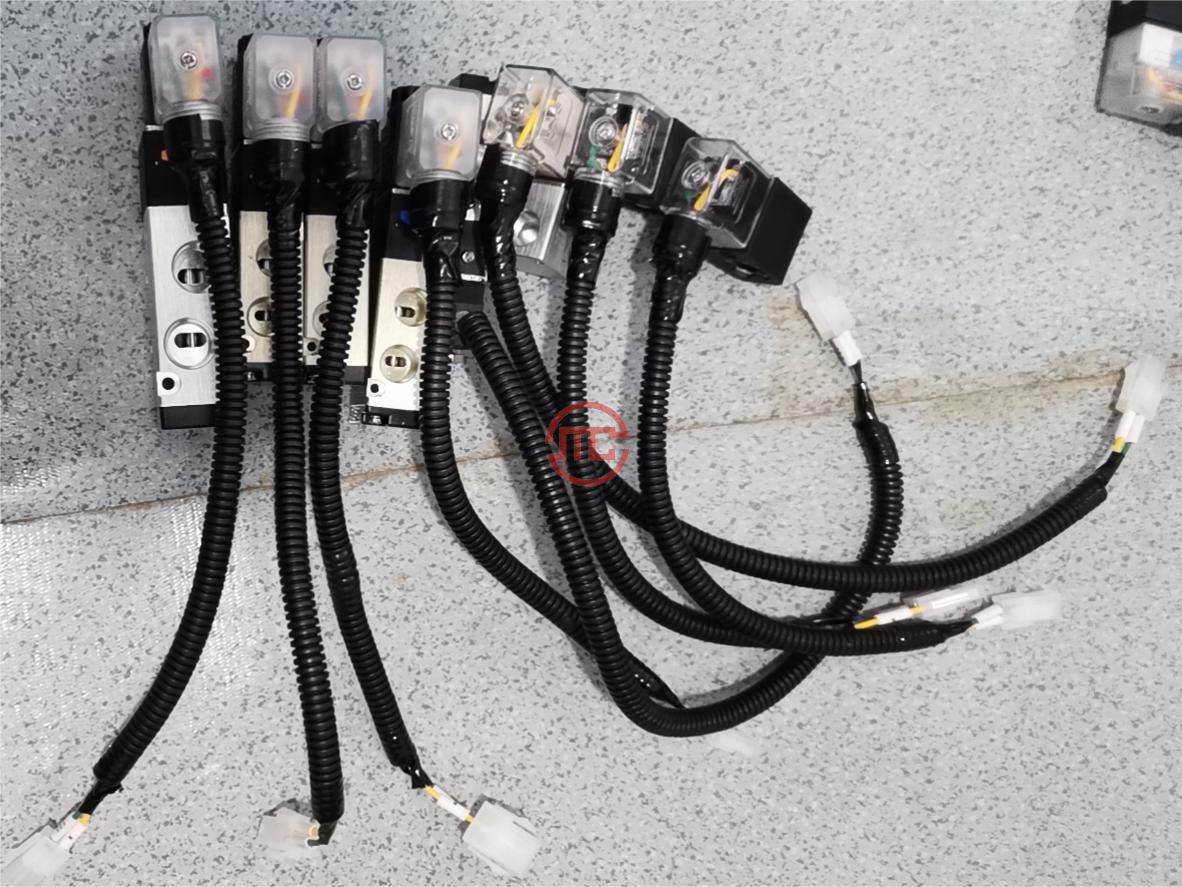

Assembly Electric Wires

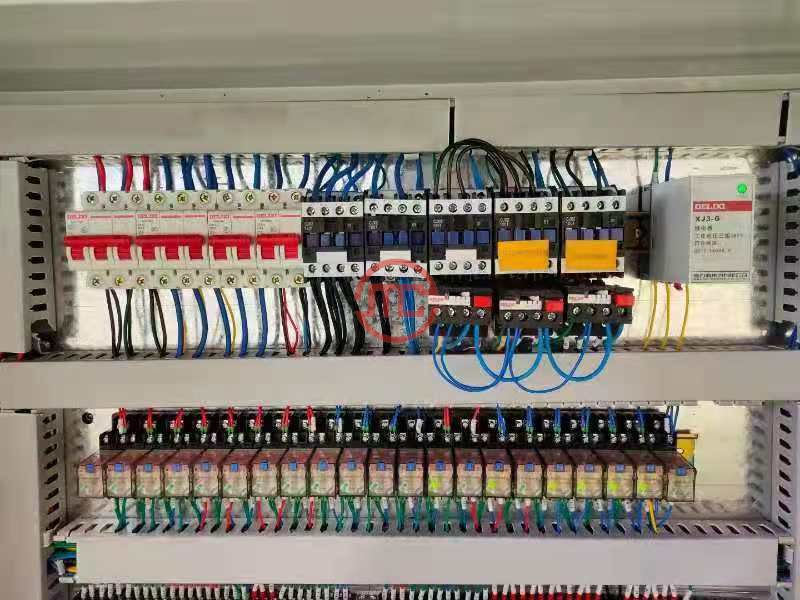

Organized Switch box



KML Cutting Machine Delivery.jpg
