Products Description

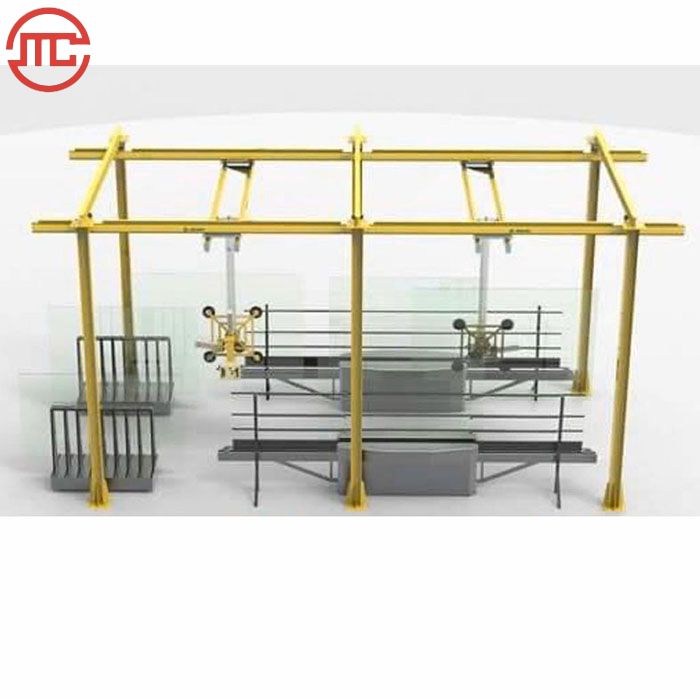

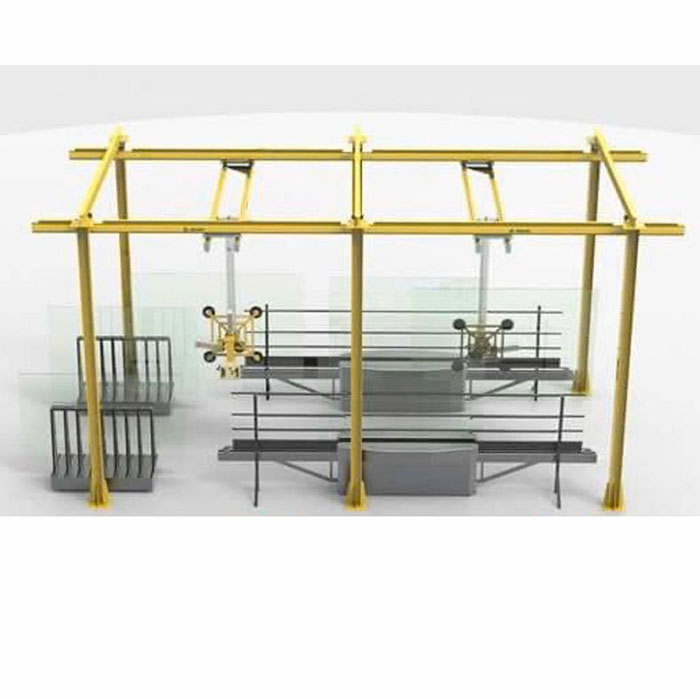

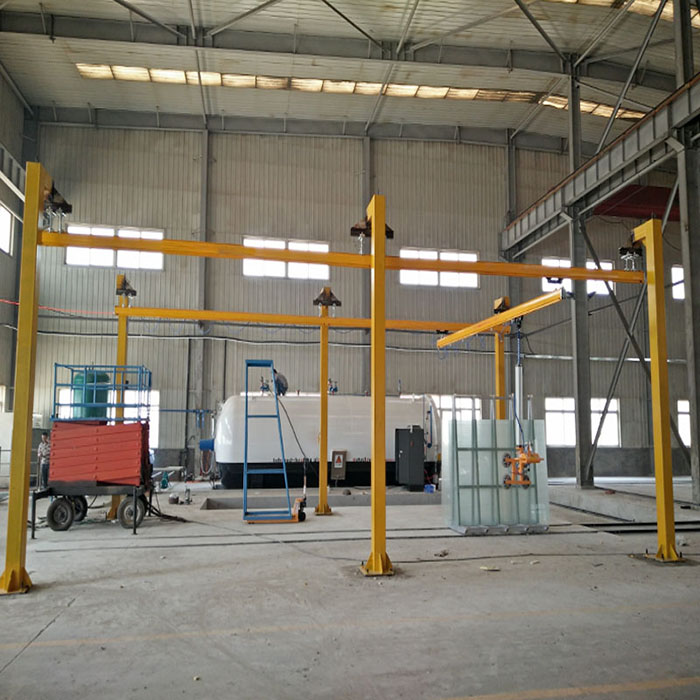

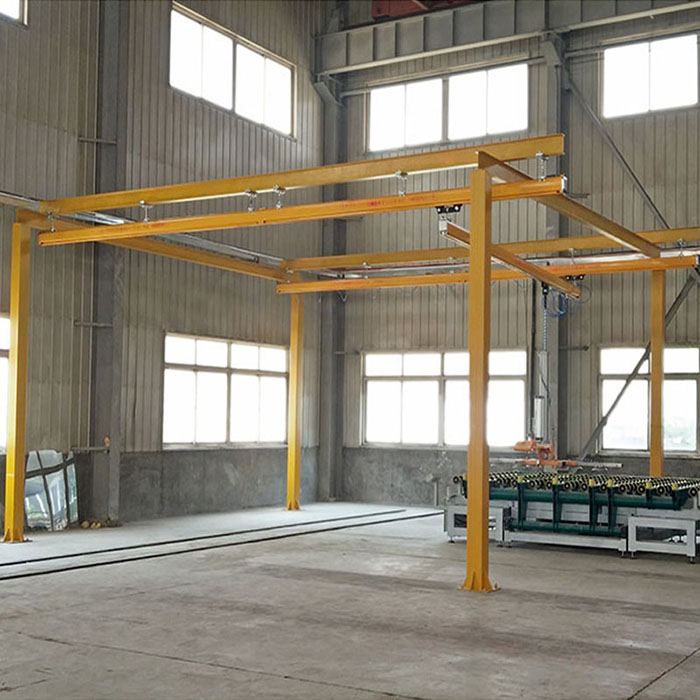

Mainly used in production line for laminated glass, tempered glass, hollow glass, and glass edge grinding machine loading and unloading glass, etc. It is equipped with a vacuum lifter to operate your glass sheet up & down, rotate & turn over.
Technical parameter
Model | MOKE 350 | MOKE 450 |
Operating Weight | 350kg | 450kg |
Work Range | Tilting & rotating 90° | Tilting & rotating 90° |
Vertical Lifting Range | 1200m | 1200m |
Air Supply | 0.6-0.8Mpa | 0.6-0.8Mpa |
Sucker Cup Qty | 4 or 6 | 4 or 6 |
Working area | 6000*6000mm, 12000*12000mm or customized | |
